Christmas light materials for C9 installs

A C9 roofline is built from a short list of materials: socket wire, bulbs, a clip for every socket, plugs to start and finish each run, and a timer to switch it. This store lists each of those parts on its own, in pack and case quantities, so a job can be ordered exactly as it was measured. Shipping is free on all orders with no minimum, and every order ships the same day.

Socket wire

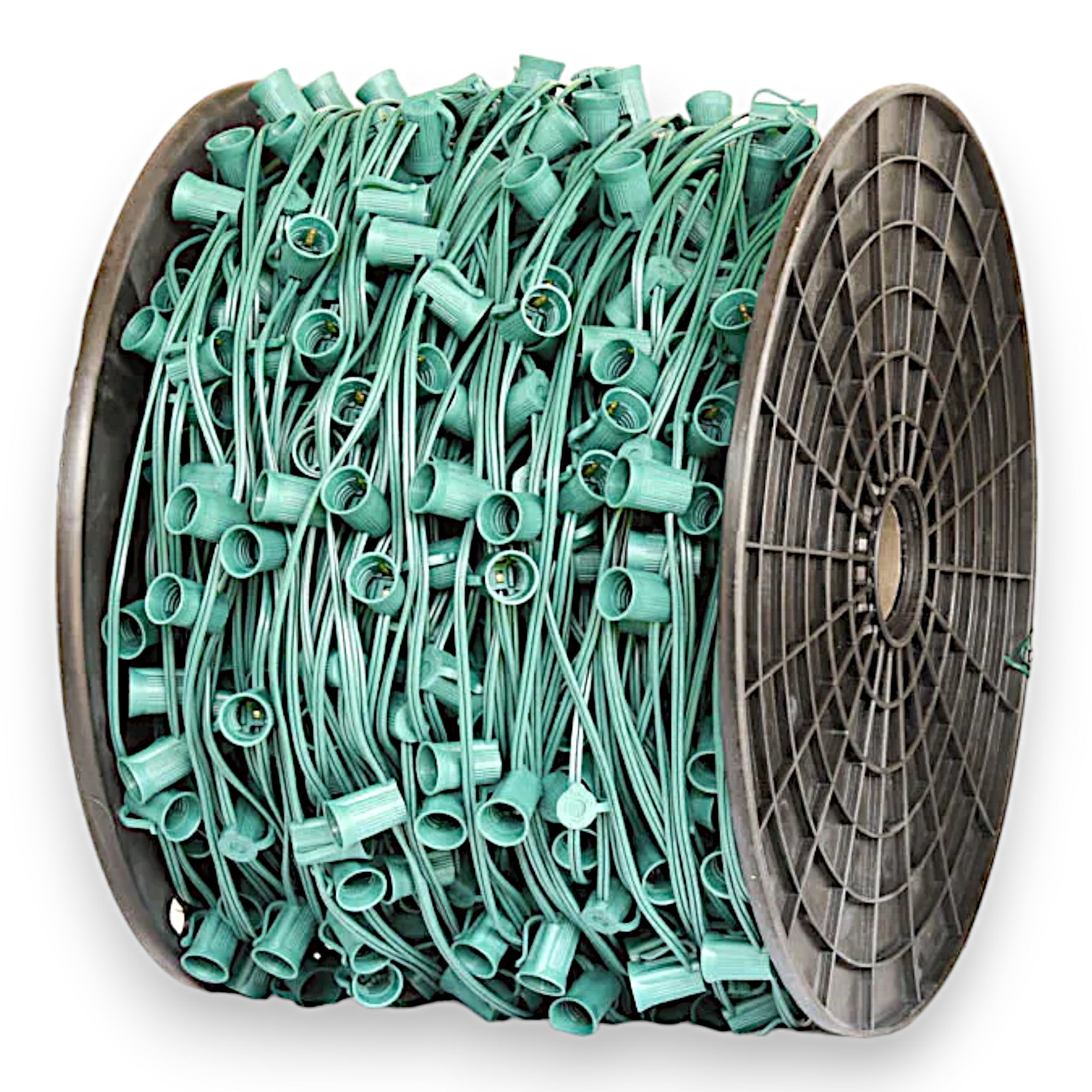

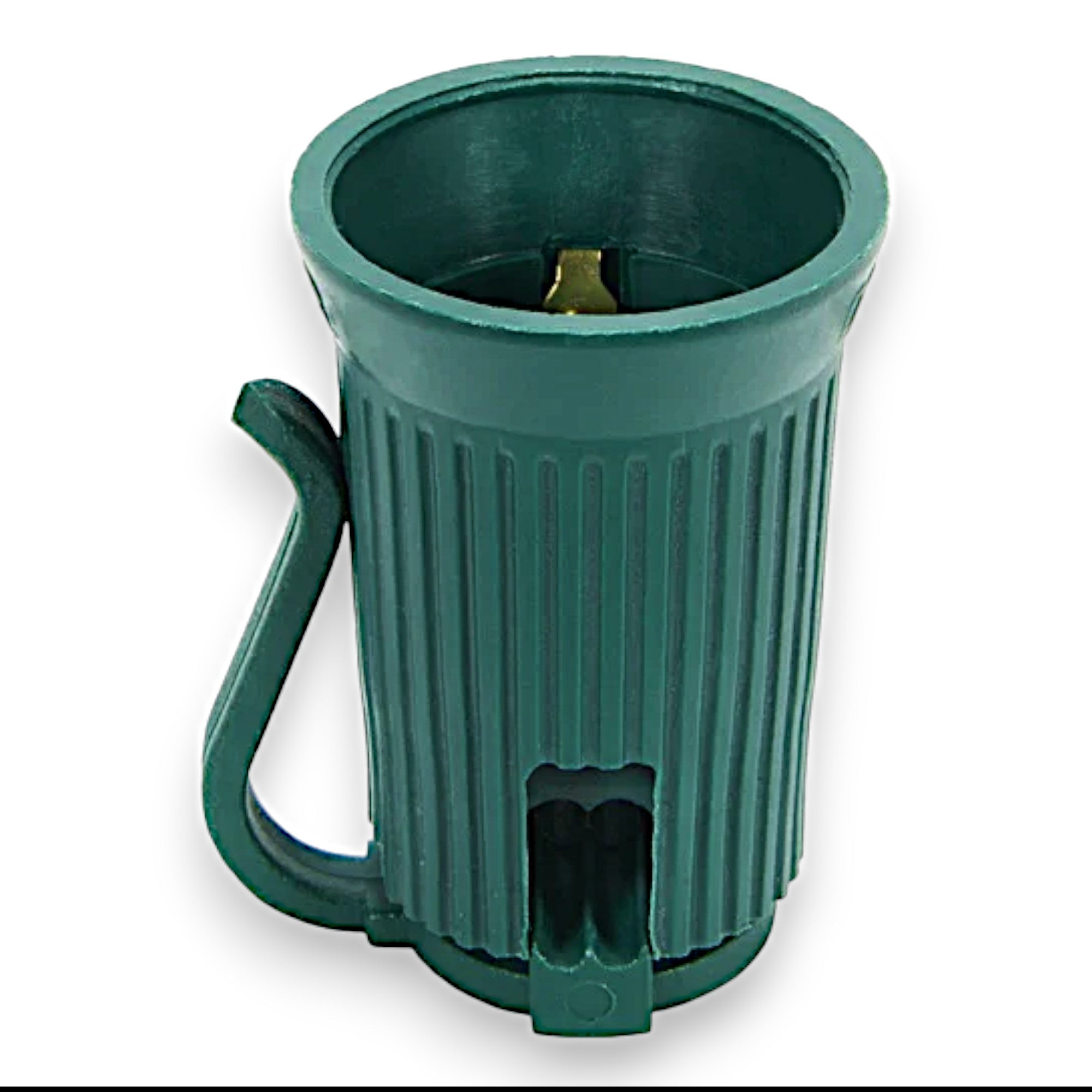

C9 socket wire is flat two-conductor wire with sockets molded in at a fixed spacing. It's sold on 1,000 ft. spools at 12 in. or 24 in. spacing, and as a 12/15 in. SPT-2 spool for heavier commercial runs. Runs are cut to length on site, so one spool covers many edges of different lengths. Magnetic socket spools are available for metal roofs and awnings, and replacement sockets let a single damaged socket be swapped without replacing the run.

LED C9 bulbs

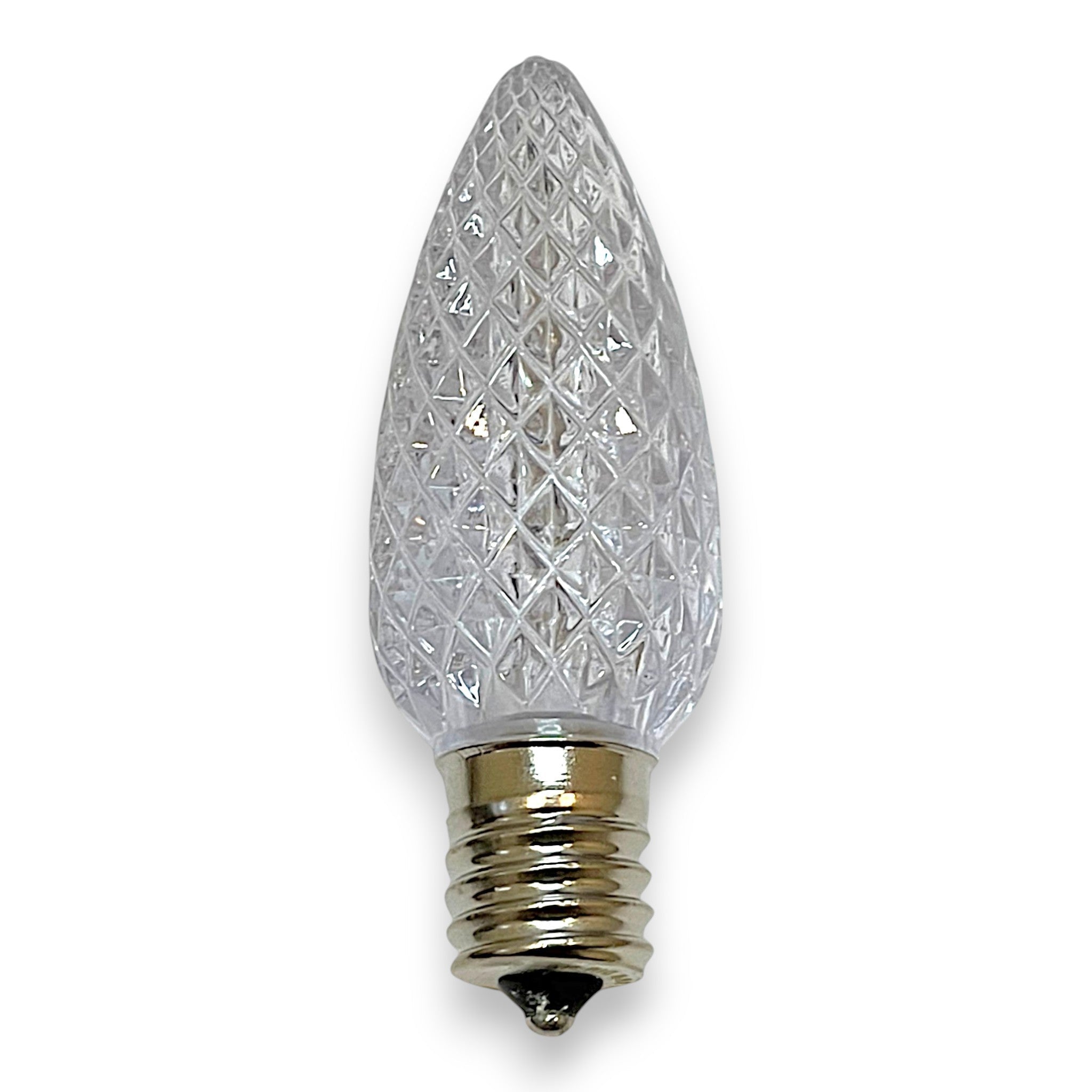

LED C9 bulbs screw into the E17 intermediate base used on every C9 socket. They're sold in 25-packs for small jobs and re-lamps, and in 500-count cases for full rooflines. One bulb per socket: at 12 in. spacing that's one per foot of wire, at 15 in. about 0.8 per foot, and at 24 in. one every two feet. Choose one color temperature per building so every run matches.

Mounting

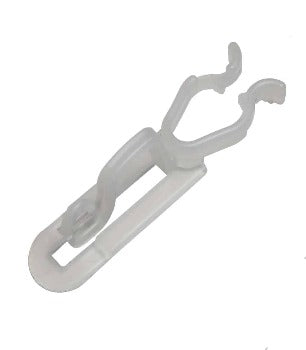

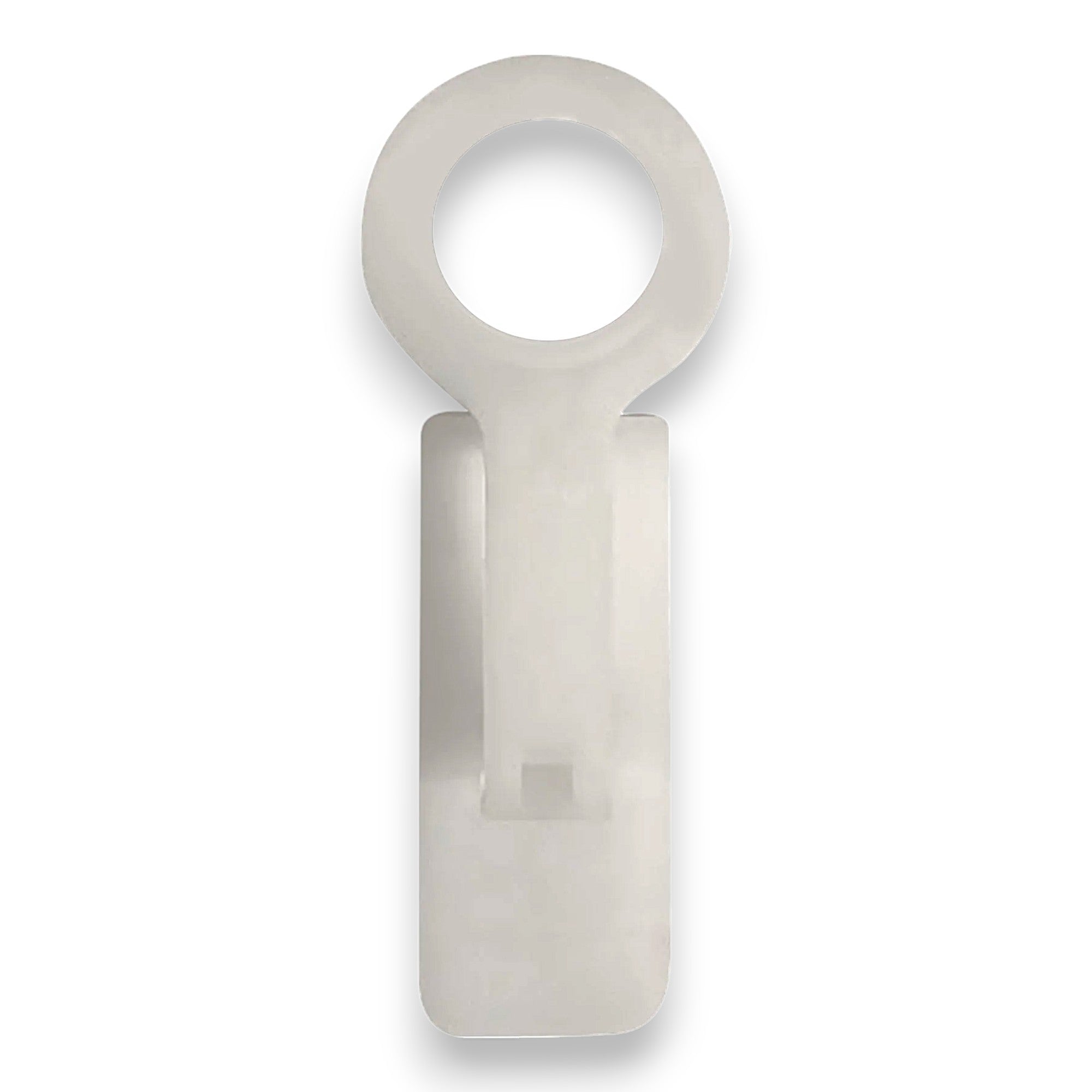

The clip depends on the surface, not the light. All-in-one clips fit shingles and gutters. C9 O-clips hold the socket and slide onto gutter lips. Ridge clips run along peaks. Tile and extended fascia clips cover tile roofs and deep fascia boards. Magnet clips hold to metal, and shingle tabs give a flat attachment under shingle edges. 8 in. light stakes set C9 bulbs along walkways and beds. Plan one clip per socket and a small spare count for breakage.

Power

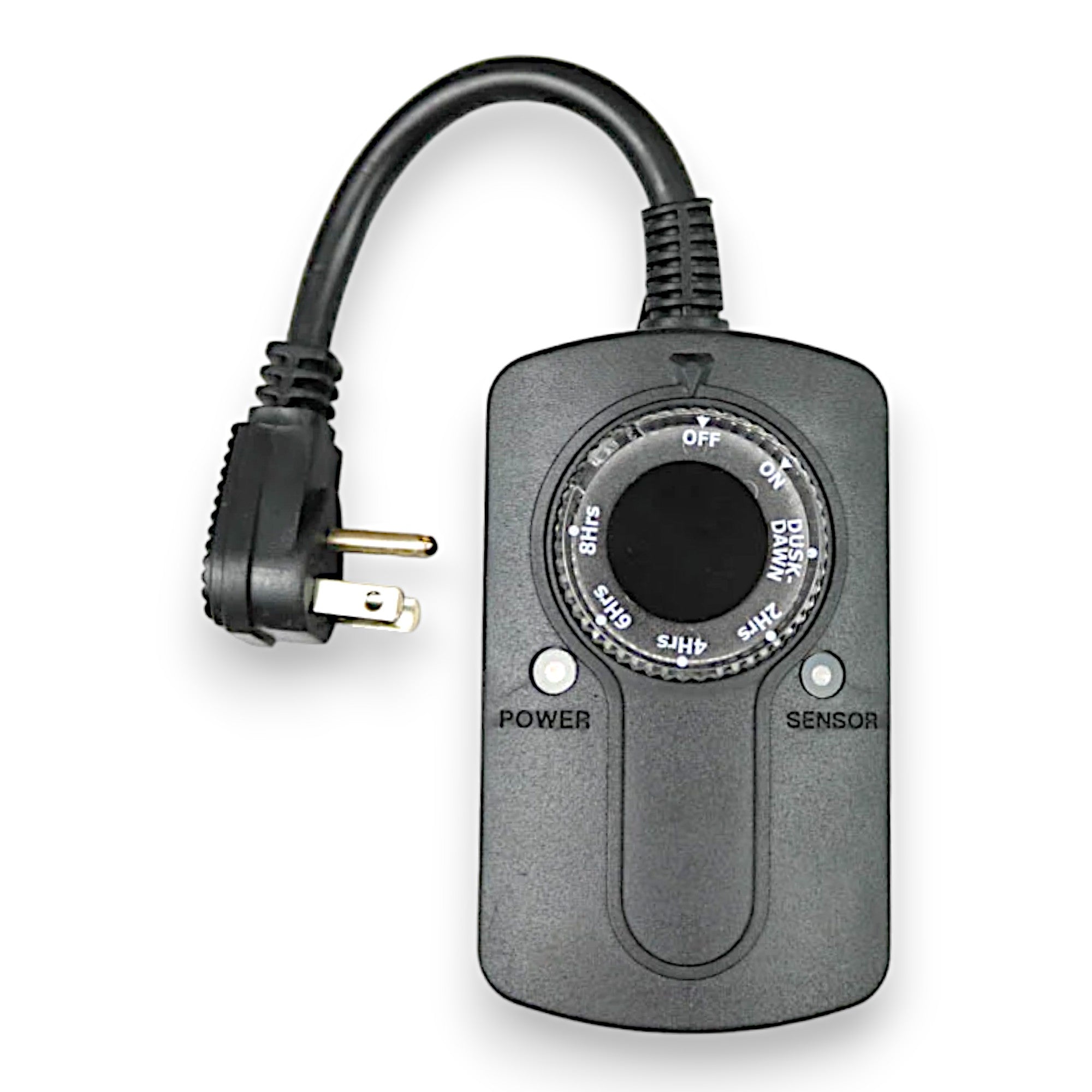

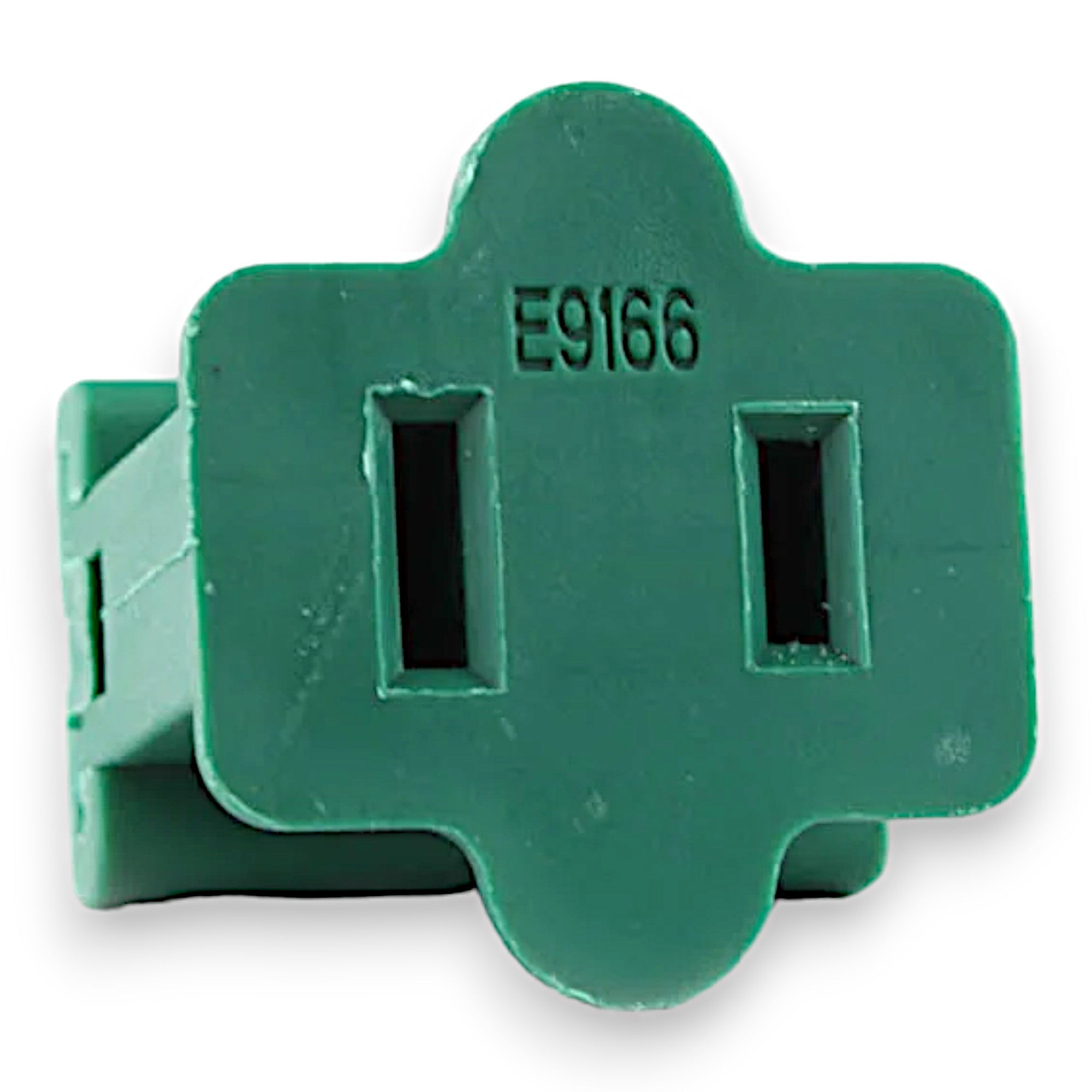

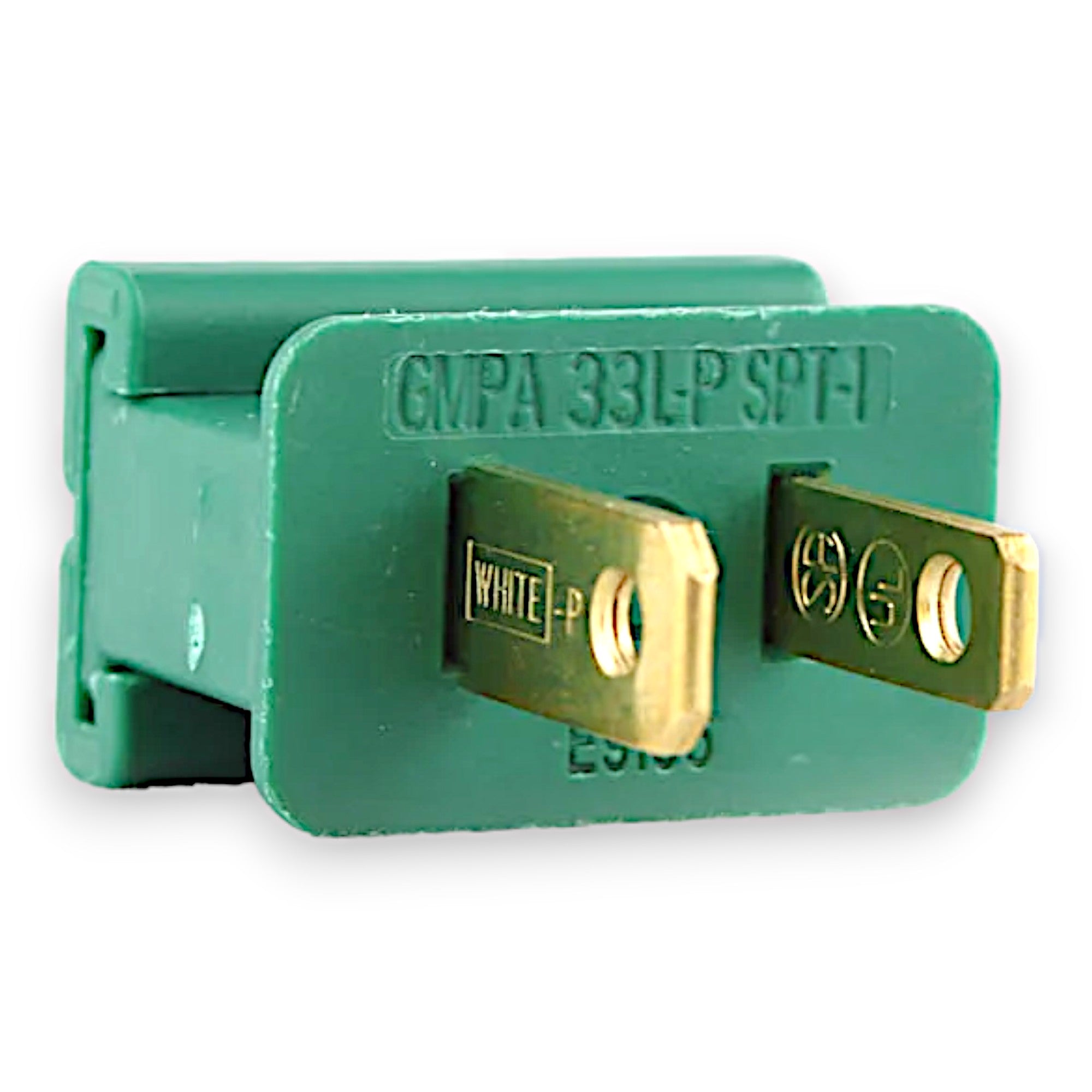

Every run needs a male plug at the power end. Runs that continue to another run take a female plug at the far end. Slide-on plugs close onto cut socket wire or lamp cord without tools. Lamp cord extends power from an outlet to the first socket when the run starts away from the outlet. A photocell timer switches each circuit on at dusk and off after a set number of hours.

Kits or loose materials

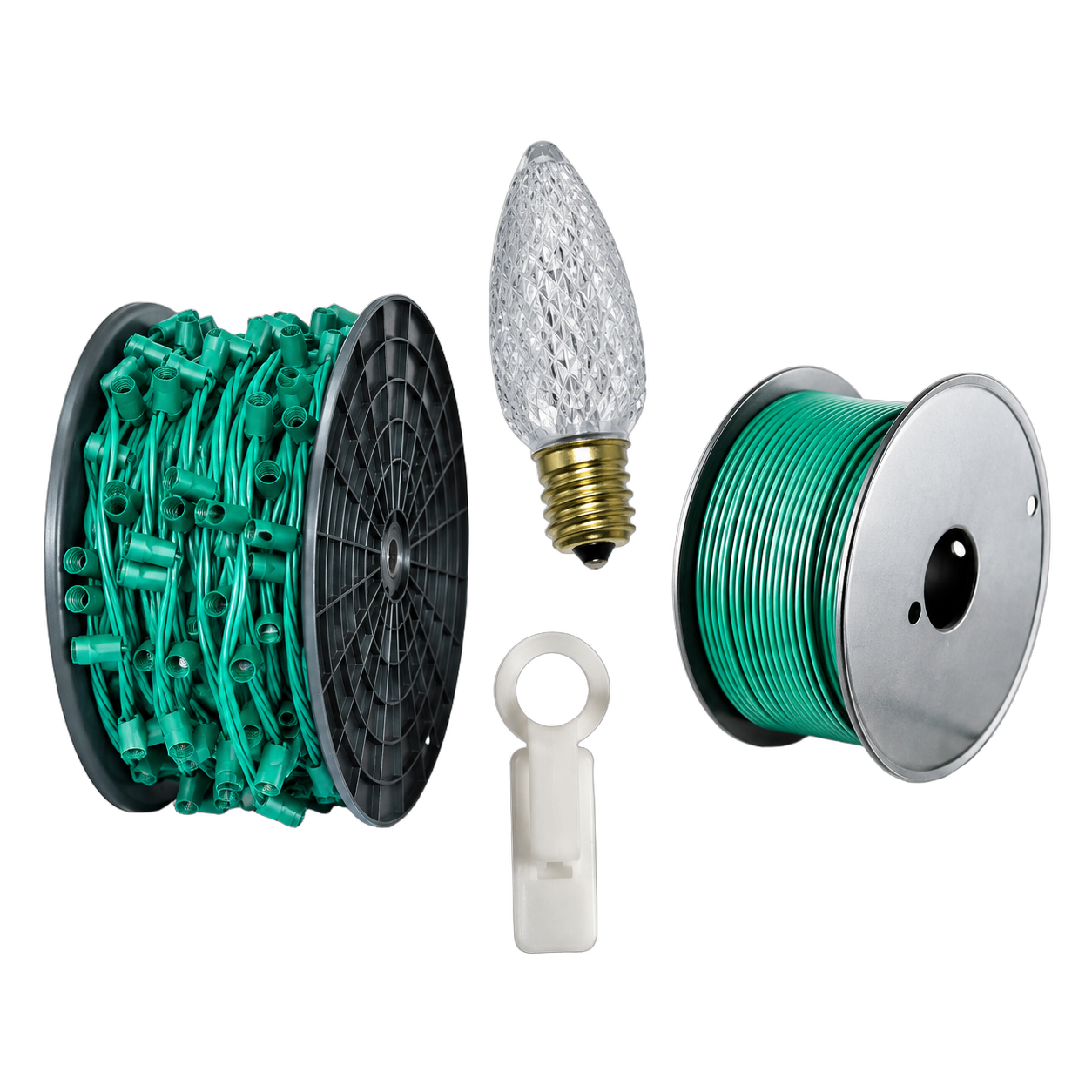

C9 installation kits bundle socket wire, bulbs, plugs and clips sized to 250, 500, 1,000, 2,000 or 4,000 ft. at 12 in. or 15 in. spacing. They suit a single building measured to a known total. Loose materials suit crews cutting many runs from one spool across several jobs, or jobs that mix surfaces and need more than one clip type. The pricing table compares a 1,000 ft. run built from bulk parts with the 1,000 ft. kit.

Ordering and returns

Pricing is listed on every product page and applies to every buyer, with no application or login. There are no processing fees. Unused, uninstalled materials in original packaging can be returned within 30 days of delivery. Orders ship within the United States.

From site walk to materials list

A materials list for a C9 job is built from one walk around the building with a tape measure and a notepad. The goal is a list where every line traces back to a measurement, so nothing is guessed on install day and nothing is left on the truck that should have been on the roof.

1. Record each run, not just the total

Measure every lit edge separately: each gutter line, each rake, each ridge, each porch or garage edge. Write down where each run starts and which outlet will power it. The total footage sets the wire, bulb and clip counts. The number of runs sets the plug count. The run start points set how much lead and lamp cord the job needs.

2. Note the surface under every run

Clips are chosen by surface: O-clips or all-in-one clips on gutters, all-in-one clips or shingle tabs on shingle edges, ridge clips on peaks, tile and fascia clips on tile roofs and deep fascia, magnet clips on metal. A house with a gutter front and shingle rakes needs two clip types, and the list should split the count by run.

3. Fix the spacing

Spacing converts feet to sockets. At 12 in. spacing, sockets equal feet. At 15 in., multiply feet by 0.8. At 24 in., by 0.5. Pick one spacing per elevation so the runs match from the street.

4. Add the per-run parts

Each run gets a male plug at its power end. A run that feeds another run gets a female plug at its far end. Add about 3 ft. of wire per run for the lead to the outlet. Runs that start away from an outlet get a length of lamp cord and a plug pair.

5. Add circuits and timers

Group runs by the outlet that powers them. Every outdoor outlet should be GFCI-protected. One photocell timer per circuit switches the display on at dusk.

A worked materials list

A sample single-story job: front gutter line 64 ft., garage gutter line 28 ft., front gable rakes (2) 46 ft., porch roof edge 22 ft., for 160 ft. of roofline at 12 in. spacing on gutters, plus a 40 ft. walkway lit on stakes at 24 in. spacing. Case-quantity unit prices from the current catalog:

Material	Quantity	Materials cost
Socket wire, 12 in. spacing (roofline)	172 ft.	$47.30
Socket wire, 24 in. spacing (walkway)	43 ft.	cut from spool
LED C9 bulbs	180	$114.84
C9 O-clips	168	$38.30
8 in. light stakes	20	$16
Male plugs	5	$3.49
Photocell timer	1	$11

Clips include 5% over the socket count for breakage and corners. The male plug count covers the four roof runs and the walkway run; because each run here starts at its own power point, no female plugs are needed. Costs are the per-unit share of case pricing, which is how materials are costed across several jobs cut from the same spool and cases; a crew buying for this job alone would order a 25-pack or a 500-count case of bulbs.

Where materials lists go wrong

• Total-only measurements. A total without the individual runs can't produce a plug count.
• One clip type for a mixed roof. Gutter clips won't hold on a rake edge.
• No spare plugs. Every mis-cut uses a plug pair. Carry extra.
• Mixed color temperatures. Warm white and sun warm white side by side read as two different products from the street. Put one color temperature on the list for the whole building.

Loose materials or a kit

When the job is one building at one spacing, a C9 installation kit sized at or just above the total footage covers wire, bulbs, plugs and clips in one line. For a 1,000 ft. run at 12 in. spacing, the parts list from spool and cases comes to $1,216.98 ($1.22 per foot), against $1,605.10 for the matching kit. Loose materials fit jobs with several clip types, several spacings, or several jobs cut from one spool.
